TAO_Server_Strategy_Factory Class Reference

Base class for the server's abstract factory that manufactures various strategies of special utility to it. This simply serves as an interface to a subclass that REALLY gets specified and loaded by the Service Configurator. More...

#include <Server_Strategy_Factory.h>

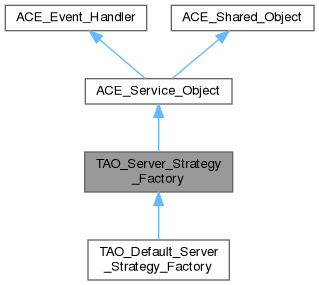

Inheritance diagram for TAO_Server_Strategy_Factory:

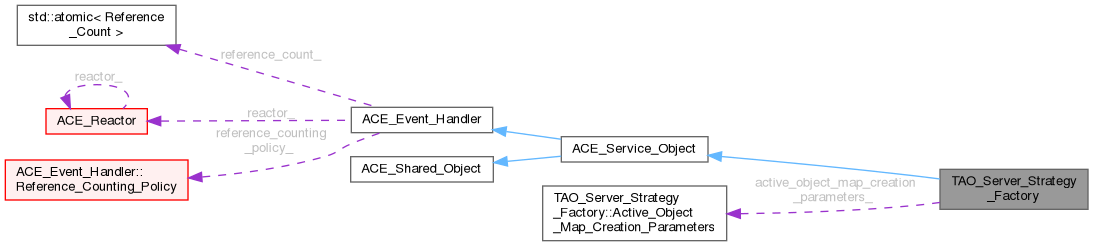

Collaboration diagram for TAO_Server_Strategy_Factory:

Classes
struct	Active_Object_Map_Creation_Parameters

Public Member Functions
	TAO_Server_Strategy_Factory ()
	Constructor.
virtual	~TAO_Server_Strategy_Factory ()
	Destructor.
virtual int	open (TAO_ORB_Core *orb_core)=0
virtual int	activate_server_connections ()=0
	Are server connections active (i.e. run in their own thread)
virtual int	thread_per_connection_timeout (ACE_Time_Value &timeout)=0
virtual int	server_connection_thread_flags ()=0
	The thread activation parameters.
virtual int	server_connection_thread_count ()=0
virtual const Active_Object_Map_Creation_Parameters &	active_object_map_creation_parameters () const
	Return the active object map creation parameters.
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object ()
virtual int	suspend ()
virtual int	resume ()
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
virtual ACE_HANDLE	get_handle () const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority () const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler ()
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor () const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
virtual Reference_Count	add_reference ()
virtual Reference_Count	remove_reference ()
Reference_Counting_Policy &	reference_counting_policy ()
Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object ()
virtual	~ACE_Shared_Object ()
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	fini ()
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Protected Attributes
Active_Object_Map_Creation_Parameters	active_object_map_creation_parameters_
	Active object map creation parameters.
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE
Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER
Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)

Detailed Description

Base class for the server's abstract factory that manufactures various strategies of special utility to it. This simply serves as an interface to a subclass that REALLY gets specified and loaded by the Service Configurator.

Constructor & Destructor Documentation

TAO_Server_Strategy_Factory()

TAO_Server_Strategy_Factory::TAO_Server_Strategy_Factory

(

)

Constructor.

~TAO_Server_Strategy_Factory()

TAO_Server_Strategy_Factory::~TAO_Server_Strategy_Factory ( )

virtual

Destructor.

Member Function Documentation

activate_server_connections()

virtual int TAO_Server_Strategy_Factory::activate_server_connections ( )

pure virtual

Are server connections active (i.e. run in their own thread)

Implemented in TAO_Default_Server_Strategy_Factory.

active_object_map_creation_parameters()

const TAO_Server_Strategy_Factory::Active_Object_Map_Creation_Parameters & TAO_Server_Strategy_Factory::active_object_map_creation_parameters ( ) const

virtual

Return the active object map creation parameters.

open()

virtual int TAO_Server_Strategy_Factory::open ( TAO_ORB_Core * orb_core )

pure virtual

Call <open> on various strategies. This is not performed in <init> so that the other portions of the ORB have a chance to "settle" in their initialization since the strategies herein might need some of that information.

Implemented in TAO_Default_Server_Strategy_Factory.

server_connection_thread_count()

virtual int TAO_Server_Strategy_Factory::server_connection_thread_count ( )

pure virtual

Implemented in TAO_Default_Server_Strategy_Factory.

server_connection_thread_flags()

virtual int TAO_Server_Strategy_Factory::server_connection_thread_flags ( )

pure virtual

The thread activation parameters.

Implemented in TAO_Default_Server_Strategy_Factory.

thread_per_connection_timeout()

virtual int TAO_Server_Strategy_Factory::thread_per_connection_timeout ( ACE_Time_Value & timeout )

pure virtual

Obtain the timeout value used by the thread-per-connection server threads to poll the shutdown flag in the ORB. Return -1 if the ORB should use the compile-time defaults. If the return value is zero then the threads block without timeouts.

Implemented in TAO_Default_Server_Strategy_Factory.

Member Data Documentation

active_object_map_creation_parameters_

Active_Object_Map_Creation_Parameters TAO_Server_Strategy_Factory::active_object_map_creation_parameters_

protected

Active object map creation parameters.

---

The documentation for this class was generated from the following files:

• Server_Strategy_Factory.h
• Server_Strategy_Factory.cpp
