TAO_CEC_ProxyPushSupplier Class Reference

ProxyPushSupplier. More...

#include <CEC_ProxyPushSupplier.h>

Inheritance diagram for TAO_CEC_ProxyPushSupplier:

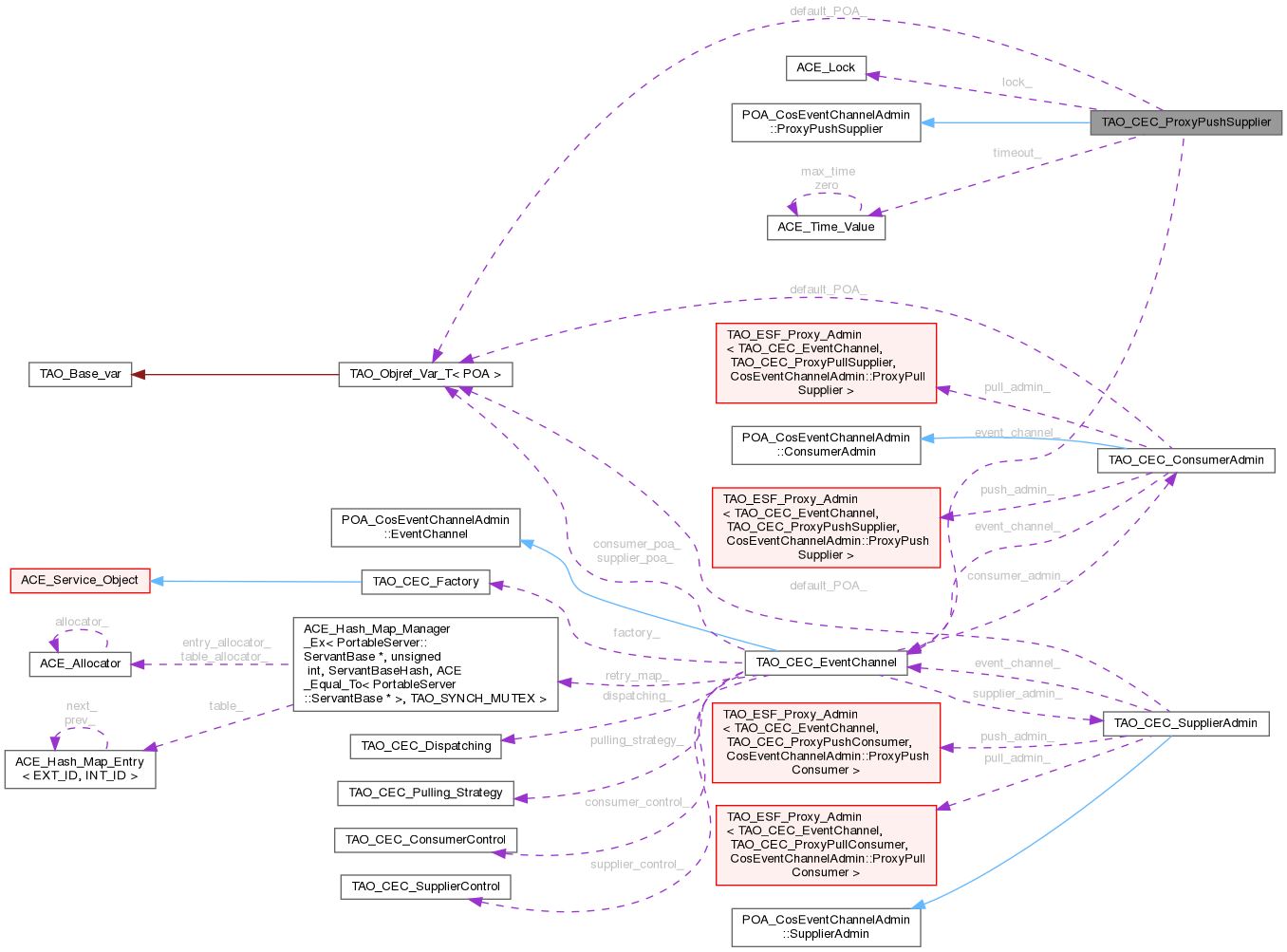

Collaboration diagram for TAO_CEC_ProxyPushSupplier:

Public Types
typedef CosEventChannelAdmin::ProxyPushSupplier_ptr	_ptr_type
typedef CosEventChannelAdmin::ProxyPushSupplier_var	_var_type

Public Member Functions
	TAO_CEC_ProxyPushSupplier (TAO_CEC_EventChannel *event_channel, const ACE_Time_Value &timeout)
	constructor...
virtual	~TAO_CEC_ProxyPushSupplier ()
	typed ec constructor
virtual void	activate (CosEventChannelAdmin::ProxyPushSupplier_ptr &)
	Activate in the POA.
virtual void	deactivate ()
	Deactivate from the POA.
CORBA::Boolean	is_connected () const
	Return 0 if no consumer is connected...
CosEventComm::PushConsumer_ptr	consumer () const
virtual void	shutdown ()
	The event channel is shutting down.
virtual void	push (const CORBA::Any &event)
	Internal methods to push an event to each consumer.
virtual void	push_nocopy (CORBA::Any &event)
void	push_to_consumer (const CORBA::Any &event)
	Internal methods to invoke a typed event to each consumer.
void	reactive_push_to_consumer (const CORBA::Any &event)
CORBA::Boolean	consumer_non_existent (CORBA::Boolean_out disconnected)
virtual void	connect_push_consumer (CosEventComm::PushConsumer_ptr push_consumer)
virtual void	disconnect_push_supplier ()
CORBA::ULong	_incr_refcnt ()
	Increment and decrement the reference count.
CORBA::ULong	_decr_refcnt ()
virtual PortableServer::POA_ptr	_default_POA ()
virtual void	_add_ref ()
virtual void	_remove_ref ()

Protected Member Functions
void	consumer (CosEventComm::PushConsumer_ptr consumer)
void	consumer_i (CosEventComm::PushConsumer_ptr consumer)
CORBA::Boolean	is_connected_i () const
	The private version (without locking) of is_connected().
void	cleanup_i ()
	Release the child and the consumer.
CosEventComm::PushConsumer_ptr	apply_policy (CosEventComm::PushConsumer_ptr c)
CORBA::Object_ptr	apply_policy_obj (CORBA::Object_ptr c)

Private Attributes
TAO_CEC_EventChannel *	event_channel_
	The Event Channel that owns this object.
ACE_Time_Value	timeout_
ACE_Lock *	lock_
	The Typed Event Channel that owns this object.
CORBA::ULong	refcount_
	The reference count.
CosEventComm::PushConsumer_var	consumer_
CosEventComm::PushConsumer_var	nopolicy_consumer_
	The consumer without any policies applied.
PortableServer::POA_var	default_POA_
	Store the default POA.

Detailed Description

ProxyPushSupplier.

Implement the CosEventChannelAdmin::ProxyPushSupplier interface, remember that this class is used to communicate with a PushConsumer, so, in effect, this is the ambassador for a consumer inside the event channel. = MEMORY MANAGEMENT It does not assume ownership of the TAO_CEC_Dispatching object. It makes a copy of the ConsumerQOS and the consumer object reference. = LOCKING Locking is strategized, the event channel acts as a factory for the locking strategies.

Member Typedef Documentation

_ptr_type

typedef CosEventChannelAdmin::ProxyPushSupplier_ptr TAO_CEC_ProxyPushSupplier::_ptr_type

_var_type

typedef CosEventChannelAdmin::ProxyPushSupplier_var TAO_CEC_ProxyPushSupplier::_var_type

Constructor & Destructor Documentation

TAO_CEC_ProxyPushSupplier()

TAO_CEC_ProxyPushSupplier::TAO_CEC_ProxyPushSupplier	(	TAO_CEC_EventChannel *	event_channel,
		const ACE_Time_Value &	timeout )

constructor...

~TAO_CEC_ProxyPushSupplier()

TAO_CEC_ProxyPushSupplier::~TAO_CEC_ProxyPushSupplier ( )

virtual

typed ec constructor

destructor...

Member Function Documentation

_add_ref()

void TAO_CEC_ProxyPushSupplier::_add_ref ( )

virtual

_decr_refcnt()

CORBA::ULong TAO_CEC_ProxyPushSupplier::_decr_refcnt

(

)

_default_POA()

PortableServer::POA_ptr TAO_CEC_ProxyPushSupplier::_default_POA ( )

virtual

_incr_refcnt()

CORBA::ULong TAO_CEC_ProxyPushSupplier::_incr_refcnt

(

)

Increment and decrement the reference count.

_remove_ref()

void TAO_CEC_ProxyPushSupplier::_remove_ref ( )

virtual

activate()

void TAO_CEC_ProxyPushSupplier::activate ( CosEventChannelAdmin::ProxyPushSupplier_ptr & activated_proxy )

virtual

Activate in the POA.

apply_policy()

CosEventComm::PushConsumer_ptr TAO_CEC_ProxyPushSupplier::apply_policy ( CosEventComm::PushConsumer_ptr c )

protected

Assigns the parameter to both consumer_ and nopolicy_consumer_, and applies policies (when appropriate) to consumer_.

apply_policy_obj()

CORBA::Object_ptr TAO_CEC_ProxyPushSupplier::apply_policy_obj ( CORBA::Object_ptr c )

protected

cleanup_i()

void TAO_CEC_ProxyPushSupplier::cleanup_i ( )

protected

Release the child and the consumer.

connect_push_consumer()

void TAO_CEC_ProxyPushSupplier::connect_push_consumer ( CosEventComm::PushConsumer_ptr push_consumer )

virtual

consumer() [1/2]

CosEventComm::PushConsumer_ptr TAO_CEC_ProxyPushSupplier::consumer

(

)

const

Return the consumer object reference. It returns nil() if it has not connected yet. NOTE: This method does not return a new reference!!! Doing so will increase the locking overhead on the critical path.

consumer() [2/2]

void TAO_CEC_ProxyPushSupplier::consumer ( CosEventComm::PushConsumer_ptr consumer )

protected

Set the consumer, used by some implementations to change the policies used when invoking operations on the consumer.

consumer_i()

void TAO_CEC_ProxyPushSupplier::consumer_i ( CosEventComm::PushConsumer_ptr consumer )

protected

consumer_non_existent()

CORBA::Boolean TAO_CEC_ProxyPushSupplier::consumer_non_existent

(

CORBA::Boolean_out

disconnected

)

Invoke the _non_existent() pseudo-operation on the consumer. If it is disconnected then it returns true and sets the disconnected flag.

deactivate()

void TAO_CEC_ProxyPushSupplier::deactivate ( )

virtual

Deactivate from the POA.

disconnect_push_supplier()

void TAO_CEC_ProxyPushSupplier::disconnect_push_supplier ( )

virtual

is_connected()

CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected

(

)

const

Return 0 if no consumer is connected...

is_connected_i()

CORBA::Boolean TAO_CEC_ProxyPushSupplier::is_connected_i ( ) const

protected

The private version (without locking) of is_connected().

push()

void TAO_CEC_ProxyPushSupplier::push ( const CORBA::Any & event )

virtual

Internal methods to push an event to each consumer.

push_nocopy()

void TAO_CEC_ProxyPushSupplier::push_nocopy ( CORBA::Any & event )

virtual

push_to_consumer()

void TAO_CEC_ProxyPushSupplier::push_to_consumer

(

const CORBA::Any &

event

)

Internal methods to invoke a typed event to each consumer.

Pushes to the consumer, verifies that it is connected.

reactive_push_to_consumer()

void TAO_CEC_ProxyPushSupplier::reactive_push_to_consumer

(

const CORBA::Any &

event

)

shutdown()

void TAO_CEC_ProxyPushSupplier::shutdown ( )

virtual

The event channel is shutting down.

Member Data Documentation

consumer_

CosEventComm::PushConsumer_var TAO_CEC_ProxyPushSupplier::consumer_

private

The consumer – use apply_policy() instead of assigning directly to consumer_. This will keep consumer_ and nopolicy_consumer_ in sync.

default_POA_

PortableServer::POA_var TAO_CEC_ProxyPushSupplier::default_POA_

private

Store the default POA.

event_channel_

TAO_CEC_EventChannel* TAO_CEC_ProxyPushSupplier::event_channel_

private

The Event Channel that owns this object.

lock_

ACE_Lock* TAO_CEC_ProxyPushSupplier::lock_

private

The Typed Event Channel that owns this object.

The locking strategy.

nopolicy_consumer_

CosEventComm::PushConsumer_var TAO_CEC_ProxyPushSupplier::nopolicy_consumer_

private

The consumer without any policies applied.

refcount_

CORBA::ULong TAO_CEC_ProxyPushSupplier::refcount_

private

The reference count.

timeout_

ACE_Time_Value TAO_CEC_ProxyPushSupplier::timeout_

private

---

The documentation for this class was generated from the following files:

• CEC_ProxyPushSupplier.h
• CEC_ProxyPushSupplier.cpp
• CEC_ProxyPushSupplier.inl
