TAO_MCastConfigIf Class Reference

#include <AVStreams_i.h>

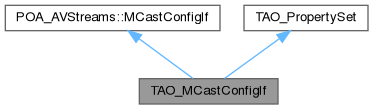

Inheritance diagram for TAO_MCastConfigIf:

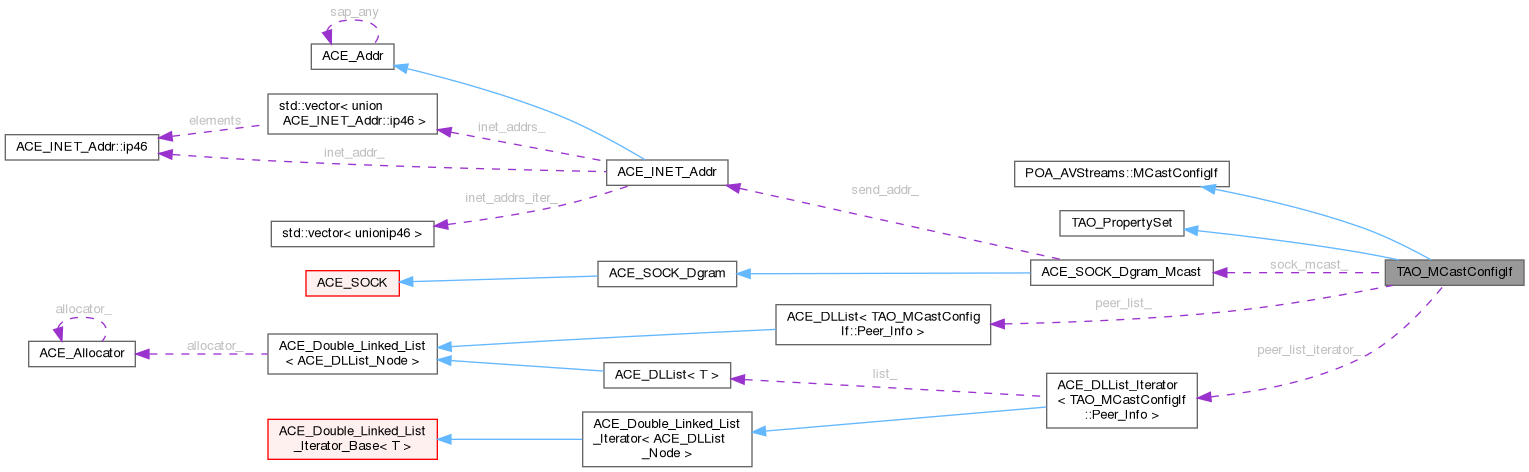

Collaboration diagram for TAO_MCastConfigIf:

Classes
struct	Peer_Info

Public Types
enum	Peer_Interface { VDEV = 0 , FLOWENDPOINT =1 }

Public Member Functions
	TAO_MCastConfigIf ()
	Default constructor.
	~TAO_MCastConfigIf ()
	Dtor.
virtual CORBA::Boolean	set_peer (CORBA::Object_ptr peer, AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_spec)
virtual void	configure (const CosPropertyService::Property &a_configuration)
virtual void	set_initial_configuration (const CosPropertyService::Properties &initial)
virtual void	set_format (const char *flowName, const char *format_name)
virtual void	set_dev_params (const char *flowName, const CosPropertyService::Properties &new_params)

Protected Member Functions
int	in_flowSpec (const AVStreams::flowSpec &flow_spec, const char *flow_name)
	checks whether the flowname is in the flow_spec.

Protected Attributes
ACE_SOCK_Dgram_Mcast	sock_mcast_
	Multicast socket.
CosPropertyService::Properties	initial_configuration_
	Initial configuration to be distributed to all B parties when they join.
ACE_DLList< Peer_Info >	peer_list_
ACE_DLList_Iterator< Peer_Info >	peer_list_iterator_

Member Enumeration Documentation

Peer_Interface

enum TAO_MCastConfigIf::Peer_Interface

Enumerator
VDEV
FLOWENDPOINT

Constructor & Destructor Documentation

TAO_MCastConfigIf()

TAO_MCastConfigIf::TAO_MCastConfigIf

(

)

Default constructor.

~TAO_MCastConfigIf()

TAO_MCastConfigIf::~TAO_MCastConfigIf

(

)

Dtor.

Member Function Documentation

configure()

void TAO_MCastConfigIf::configure ( const CosPropertyService::Property & a_configuration )

virtual

in_flowSpec()

int TAO_MCastConfigIf::in_flowSpec ( const AVStreams::flowSpec & flow_spec, const char * flow_name )

protected

checks whether the flowname is in the flow_spec.

set_dev_params()

void TAO_MCastConfigIf::set_dev_params ( const char * flowName, const CosPropertyService::Properties & new_params )

virtual

set_format()

void TAO_MCastConfigIf::set_format ( const char * flowName, const char * format_name )

virtual

set_initial_configuration()

void TAO_MCastConfigIf::set_initial_configuration ( const CosPropertyService::Properties & initial )

virtual

set_peer()

CORBA::Boolean TAO_MCastConfigIf::set_peer ( CORBA::Object_ptr peer, AVStreams::streamQoS & the_qos, const AVStreams::flowSpec & the_spec )

virtual

Member Data Documentation

initial_configuration_

CosPropertyService::Properties TAO_MCastConfigIf::initial_configuration_

protected

Initial configuration to be distributed to all B parties when they join.

peer_list_

ACE_DLList<Peer_Info> TAO_MCastConfigIf::peer_list_

protected

peer_list_iterator_

ACE_DLList_Iterator<Peer_Info> TAO_MCastConfigIf::peer_list_iterator_

protected

sock_mcast_

ACE_SOCK_Dgram_Mcast TAO_MCastConfigIf::sock_mcast_

protected

Multicast socket.

---

The documentation for this class was generated from the following files:

• AVStreams_i.h
• AVStreams_i.cpp
