TAO_Client_Strategy_Factory Class Reference

Abstract factory used by the client to manufacture various strategies used on the client-side. More...

#include <Client_Strategy_Factory.h>

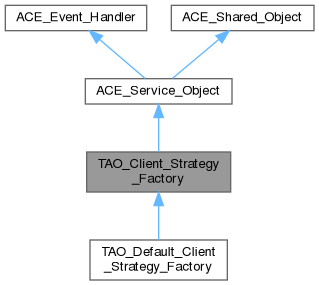

Inheritance diagram for TAO_Client_Strategy_Factory:

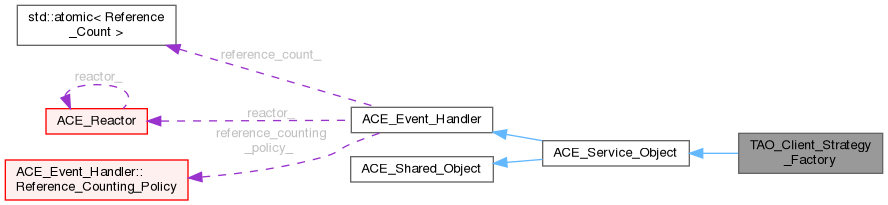

Collaboration diagram for TAO_Client_Strategy_Factory:

Public Types
enum	Connect_Strategy { TAO_BLOCKED_CONNECT , TAO_REACTIVE_CONNECT , TAO_LEADER_FOLLOWER_CONNECT }
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Public Member Functions
virtual	~TAO_Client_Strategy_Factory ()
	Destructor.
virtual TAO_Transport_Mux_Strategy *	create_transport_mux_strategy (TAO_Transport *transport)=0
	Create the correct client request muxing strategy.
virtual ACE_Lock *	create_transport_mux_strategy_lock ()=0
	Create the correct lock for request muxing strategy.
virtual int	reply_dispatcher_table_size () const =0
	Return the size of the reply dispatcher table.
virtual TAO_Wait_Strategy *	create_wait_strategy (TAO_Transport *transport)=0
	Create the correct client wait_for_reply strategy.
virtual TAO_Connect_Strategy *	create_connect_strategy (TAO_ORB_Core *)=0
	Create the correct client asynch_connect strategy.
virtual Connect_Strategy	connect_strategy () const =0
	Return the selected connection strategy option.
virtual int	allow_callback ()=0
	Does the client allow any form of callback?
virtual bool	use_cleanup_options () const =0
	Cleanup options for wait strategy.
virtual const TAO::Invocation_Retry_Params &	invocation_retry_params () const =0
virtual Messaging::SyncScope	sync_scope () const =0
	Return the value to be used as the default sync scope for the ORB.
Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
virtual	~ACE_Service_Object ()
virtual int	suspend ()
virtual int	resume ()
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
virtual ACE_HANDLE	get_handle () const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority () const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler ()
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor () const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
virtual Reference_Count	add_reference ()
virtual Reference_Count	remove_reference ()
Reference_Counting_Policy &	reference_counting_policy ()
Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object ()
virtual	~ACE_Shared_Object ()
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	fini ()
virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Additional Inherited Members
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE
Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER
Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

Abstract factory used by the client to manufacture various strategies used on the client-side.

Member Enumeration Documentation

Connect_Strategy

enum TAO_Client_Strategy_Factory::Connect_Strategy

Enumerator
TAO_BLOCKED_CONNECT
TAO_REACTIVE_CONNECT
TAO_LEADER_FOLLOWER_CONNECT

Constructor & Destructor Documentation

~TAO_Client_Strategy_Factory()

TAO_Client_Strategy_Factory::~TAO_Client_Strategy_Factory ( )

virtual

Destructor.

Member Function Documentation

allow_callback()

virtual int TAO_Client_Strategy_Factory::allow_callback ( )

pure virtual

Does the client allow any form of callback?

Implemented in TAO_Default_Client_Strategy_Factory.

connect_strategy()

virtual Connect_Strategy TAO_Client_Strategy_Factory::connect_strategy ( ) const

pure virtual

Return the selected connection strategy option.

Implemented in TAO_Default_Client_Strategy_Factory.

create_connect_strategy()

virtual TAO_Connect_Strategy * TAO_Client_Strategy_Factory::create_connect_strategy ( TAO_ORB_Core * )

pure virtual

Create the correct client asynch_connect strategy.

Implemented in TAO_Default_Client_Strategy_Factory.

create_transport_mux_strategy()

virtual TAO_Transport_Mux_Strategy * TAO_Client_Strategy_Factory::create_transport_mux_strategy ( TAO_Transport * transport )

pure virtual

Create the correct client request muxing strategy.

Implemented in TAO_Default_Client_Strategy_Factory.

create_transport_mux_strategy_lock()

virtual ACE_Lock * TAO_Client_Strategy_Factory::create_transport_mux_strategy_lock ( )

pure virtual

Create the correct lock for request muxing strategy.

Implemented in TAO_Default_Client_Strategy_Factory.

create_wait_strategy()

virtual TAO_Wait_Strategy * TAO_Client_Strategy_Factory::create_wait_strategy ( TAO_Transport * transport )

pure virtual

Create the correct client wait_for_reply strategy.

Implemented in TAO_Default_Client_Strategy_Factory.

invocation_retry_params()

virtual const TAO::Invocation_Retry_Params & TAO_Client_Strategy_Factory::invocation_retry_params ( ) const

pure virtual

Return the parameters used to optionally retry invocation after an exception occurs.

Implemented in TAO_Default_Client_Strategy_Factory.

reply_dispatcher_table_size()

virtual int TAO_Client_Strategy_Factory::reply_dispatcher_table_size ( ) const

pure virtual

Return the size of the reply dispatcher table.

Implemented in TAO_Default_Client_Strategy_Factory.

sync_scope()

virtual Messaging::SyncScope TAO_Client_Strategy_Factory::sync_scope ( ) const

pure virtual

Return the value to be used as the default sync scope for the ORB.

Implemented in TAO_Default_Client_Strategy_Factory.

use_cleanup_options()

virtual bool TAO_Client_Strategy_Factory::use_cleanup_options ( ) const

pure virtual

Cleanup options for wait strategy.

Only applicable to RW wait strategy

Implemented in TAO_Default_Client_Strategy_Factory.

---

The documentation for this class was generated from the following files:

• Client_Strategy_Factory.h
• Client_Strategy_Factory.cpp
