A Handler for timer. It helps in the management of timers registered with the Proactor. More...

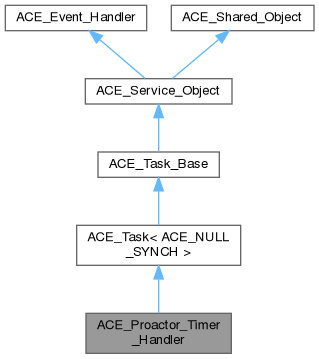

Inheritance diagram for ACE_Proactor_Timer_Handler:

[legend]

Collaboration diagram for ACE_Proactor_Timer_Handler:

[legend]

Public Member Functions
	ACE_Proactor_Timer_Handler (ACE_Proactor &proactor)
	Constructor.

	~ACE_Proactor_Timer_Handler () override
	Destructor.

int	destroy ()

int	signal ()

Public Member Functions inherited from ACE_Task< ACE_NULL_SYNCH >
	ACE_Task (ACE_Thread_Manager thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy > mq=0)

virtual	~ACE_Task ()
	Destructor.

ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy > *	msg_queue ()
	Gets the message queue associated with this task.

void	msg_queue (ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy > *)
	Sets the message queue associated with this task.

ACE_Time_Value_T< ACE_System_Time_Policy >	gettimeofday () const

void	set_time_policy (ACE_System_Time_Policy const &time_policy)

int	putq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	getq (ACE_Message_Block &mb, ACE_Time_Value timeout=0)

int	ungetq (ACE_Message_Block , ACE_Time_Value timeout=0)

int	reply (ACE_Message_Block mb, ACE_Time_Value tv=0)

int	put_next (ACE_Message_Block msg, ACE_Time_Value timeout=0)

const ACE_TCHAR *	name () const

virtual ACE_Task< ACE_SYNCH_USE, ACE_System_Time_Policy > *	next ()
	Get next Task pointer.

void	next (ACE_Task< ACE_SYNCH_USE, ACE_System_Time_Policy > *)
	Set next Task pointer.

ACE_Task< ACE_SYNCH_USE, ACE_System_Time_Policy > *	sibling ()

virtual int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)

void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)
	Manipulate watermarks.

void	dump () const
	Dump the state of an object.

Public Member Functions inherited from ACE_Task_Base
	ACE_Task_Base (ACE_Thread_Manager *=0)
	Constructor.

virtual	~ACE_Task_Base ()
	Destructor.

virtual int	open (void *args=0)
	Default ACE_Task open routine.

virtual int	close (u_long flags=0)
	Default ACE_Task close routine.

virtual int	module_closed ()

virtual int	put (ACE_Message_Block , ACE_Time_Value =0)
	Default ACE_Task put routine.

virtual int	activate (long flags=THR_NEW_LWP\|THR_JOINABLE\|THR_INHERIT_SCHED, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base task=0, ACE_hthread_t thread_handles[]=0, void stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0, const char *thr_name[]=0)

virtual int	wait ()
	Wait for all threads running in a task to exit.

virtual int	suspend ()
	Suspend a task.

virtual int	resume ()
	Resume a suspended task.

int	grp_id () const
	Get the current group id.

void	grp_id (int)
	Set the current group id.

ACE_Thread_Manager *	thr_mgr () const
	Get the thread manager associated with this Task.

void	thr_mgr (ACE_Thread_Manager *)
	Set the thread manager associated with this Task.

int	is_reader () const
	True if queue is a reader, else false.

int	is_writer () const
	True if queue is a writer, else false.

size_t	thr_count () const

ACE_thread_t	last_thread () const

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)
	Constructor.

virtual	~ACE_Service_Object ()
	Destructor.

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default
	Destructor is virtual to enable proper cleanup.

virtual ACE_HANDLE	get_handle () const
	Get the I/O handle.

virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.

virtual int	priority () const

virtual void	priority (int priority)
	Set the priority of the Event_Handler.

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)
	Called when a process exits.

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler ()

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.

virtual ACE_Reactor *	reactor () const
	Get the event demultiplexors.

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const
	Get only the reactor's timer related interface.

virtual Reference_Count	add_reference ()
	Increment reference count on the handler.

virtual Reference_Count	remove_reference ()
	Decrement reference count on the handler.

Reference_Counting_Policy &	reference_counting_policy ()
	Current Reference_Counting_Policy.

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object ()
	Constructor.

virtual	~ACE_Shared_Object ()
	Destructor.

virtual int	init (int argc, ACE_TCHAR *argv[])
	Initializes object when dynamic linking occurs.

virtual int	fini ()
	Terminates object when dynamic unlinking occurs.

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const
	Returns information on a service object.

Protected Member Functions
int	svc () override

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class.

Protected Attributes
ACE_Auto_Event	timer_event_
	Event to wait on.

ACE_Proactor &	proactor_
	Proactor.

int	shutting_down_
	Flag used to indicate when we are shutting down.

Protected Attributes inherited from ACE_Task_Base
size_t	thr_count_

ACE_Thread_Manager *	thr_mgr_
	Multi-threading manager.

u_long	flags_
	ACE_Task flags.

int	grp_id_
	This maintains the group id of the Task.

ACE_thread_t	last_thread_id_
	Holds the thread ID of the last thread to exit svc() in this object.

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
	Reference count.

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
enum	{ LO_PRIORITY = 0 , HI_PRIORITY = 10 , NULL_MASK = 0 , READ_MASK = (1 << 0) , WRITE_MASK = (1 << 1) , EXCEPT_MASK = (1 << 2) , ACCEPT_MASK = (1 << 3) , CONNECT_MASK = (1 << 4) , TIMER_MASK = (1 << 5) , QOS_MASK = (1 << 6) , GROUP_QOS_MASK = (1 << 7) , SIGNAL_MASK = (1 << 8) , ALL_EVENTS_MASK , RWE_MASK , DONT_CALL = (1 << 9) }

enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1 , ACE_REACTOR_RESUMES_HANDLER = 0 , ACE_APPLICATION_RESUMES_HANDLER }

typedef long	Reference_Count
	Reference count type.

Static Public Member Functions inherited from ACE_Task_Base
static ACE_THR_FUNC_RETURN	svc_run (void *)
	Routine that runs the service routine as a daemon thread.

static void	cleanup (void object, void params)

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
	Performs the inverse of the register_stdin_handler() method.

Public Attributes inherited from ACE_Task< ACE_NULL_SYNCH >
ACE_Message_Queue< ACE_SYNCH_USE, ACE_System_Time_Policy > *	msg_queue_
	Queue of messages on the ACE_Task..

bool	delete_msg_queue_
	true if should delete Message_Queue, false otherwise.

ACE_Module< ACE_SYNCH_USE, ACE_System_Time_Policy > *	mod_
	Back-pointer to the enclosing module.

ACE_Task< ACE_SYNCH_USE, ACE_System_Time_Policy > *	next_
	Pointer to adjacent ACE_Task.

	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.

Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.

Detailed Description

A Handler for timer. It helps in the management of timers registered with the Proactor.

This object has a thread that will wait on the earliest time in a list of timers and an event. When a timer expires, the thread will post a completion event on the port and go back to waiting on the timer queue and event. If the event is signaled, the thread will refresh the time it is currently waiting on (in case the earliest time has changed).

Constructor & Destructor Documentation

◆ ACE_Proactor_Timer_Handler()

ACE_Proactor_Timer_Handler::ACE_Proactor_Timer_Handler ( ACE_Proactor & proactor )

explicit

Constructor.

◆ ~ACE_Proactor_Timer_Handler()

ACE_Proactor_Timer_Handler::~ACE_Proactor_Timer_Handler ( )

override

Destructor.

Member Function Documentation

◆ destroy()

int ACE_Proactor_Timer_Handler::destroy ( )

Proactor calls this to shut down the timer handler gracefully. Just calling the destructor alone doesnt do what <destroy> does. <destroy> make sure the thread exits properly.

◆ signal()

int ACE_Proactor_Timer_Handler::signal ( )

Proactor calls this to refresh the timer event thread, to wake up the thread from a sleep. This is needed to make the thread recompute its sleep time after changes to the timer queue.

◆ svc()

int ACE_Proactor_Timer_Handler::svc ( )

overrideprotectedvirtual

Run by a daemon thread to handle deferred processing. In other words, this method will do the waiting on the earliest timer and event.

Reimplemented from ACE_Task_Base.

Member Data Documentation

◆ proactor_

ACE_Proactor& ACE_Proactor_Timer_Handler::proactor_

protected

Proactor.

◆ shutting_down_

int ACE_Proactor_Timer_Handler::shutting_down_

protected

Flag used to indicate when we are shutting down.

◆ timer_event_

ACE_Auto_Event ACE_Proactor_Timer_Handler::timer_event_

protected

Event to wait on.

The documentation for this class was generated from the following file:

Proactor.cpp
