A GQoS session object. More...

#include <QoS_Session_Impl.h>

Inheritance diagram for ACE_GQoS_Session:

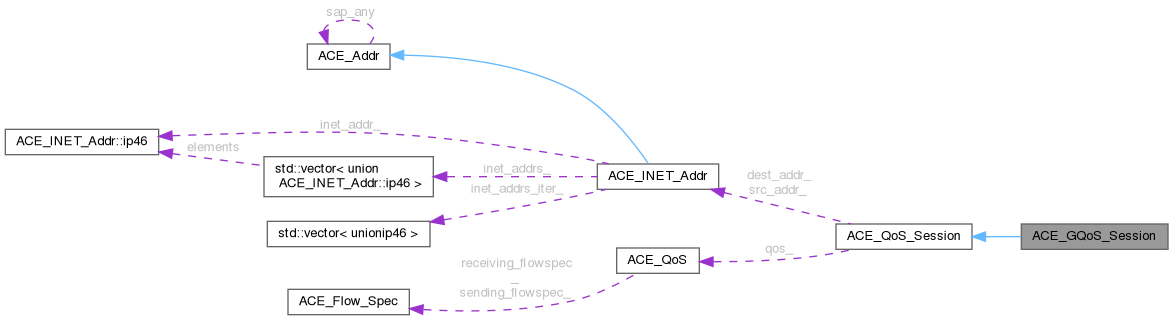

Collaboration diagram for ACE_GQoS_Session:

[legend]

Public Member Functions
	~ACE_GQoS_Session ()
	Default destructor.

virtual int	open (ACE_INET_Addr dest_addr, ACE_Protocol_ID protocol_id)
	Open a GQoS session [dest IP, dest port, Protocol ID].

virtual int	close ()
	Close the GQoS Session.

virtual ACE_QoS	qos () const
	Returns the QoS for this GQoS session.

virtual int	qos (ACE_SOCK socket, ACE_QoS_Manager qos_manager, const ACE_QoS &ace_qos)

virtual void	qos (const ACE_QoS &ace_qos)

virtual int	update_qos ()

virtual ACE_End_Point_Type	flags () const
	Get/Set methods for the flags_.

virtual void	flags (const ACE_End_Point_Type flags)

virtual ACE_INET_Addr	dest_addr () const
	Get the destination address for this GQoS session.

virtual void	dest_addr (const ACE_INET_Addr &dest_addr)
	Set the destination address for this GQoS session.

virtual u_short	source_port () const
	Get the source port for this session.

virtual void	source_port (const u_short &source_port)
	Set the source port for this session.

virtual ACE_INET_Addr *	source_addr () const

virtual void	source_addr (ACE_INET_Addr *source_addr)
	Set the source port for this session.

virtual int	session_id () const
	Get the GQoS session id.

virtual void	session_id (const int session_id)
	Set the GQoS session id.

virtual ACE_HANDLE	rsvp_events_handle ()
	Get the file descriptor of the underlying socket.

virtual void	rsvp_event_type (RSVP_Event_Type event_type)

virtual RSVP_Event_Type	rsvp_event_type ()
	Set the RAPI event that last occurred.

virtual int	version ()
	Get the RAPI event that last occurred.

Public Member Functions inherited from ACE_QoS_Session
virtual	~ACE_QoS_Session ()
	to shutup g++.

Static Public Attributes
static int	GQoS_session_id = 0

Private Member Functions
	ACE_GQoS_Session ()

Friends
class	ACE_QoS_Session_Factory

Additional Inherited Members
Public Types inherited from ACE_QoS_Session
enum	RSVP_Event_Type { RSVP_PATH_EVENT , RSVP_RESV_EVENT , RSVP_RESV_CONFIRM , RSVP_RESV_ERROR , RSVP_PATH_ERROR }

enum	ACE_End_Point_Type { ACE_QOS_SENDER , ACE_QOS_RECEIVER , ACE_QOS_BOTH }

Protected Attributes inherited from ACE_QoS_Session
u_short	source_port_
	Source port if this is a Sender session. Used for rapi_sender ().

int	session_id_
	session id for the session.

ACE_INET_Addr	dest_addr_
	Destination address for this session.

ACE_INET_Addr *	src_addr_
	Source address for this session.

ACE_Protocol_ID	protocol_id_
	Is this a TCP or a UDP session.

ACE_QoS	qos_
	QoS for this session.

ACE_End_Point_Type	flags_
	Specifies if this is a sending/receiving/both session.

RSVP_Event_Type	rsvp_event_type_

Detailed Description

A GQoS session object.

This class is a GQoS (Generic QoS, an implementation of RSVP on Win2K) implementation of the ACE_QoS_Session interface.

Constructor & Destructor Documentation

◆ ~ACE_GQoS_Session()

ACE_GQoS_Session::~ACE_GQoS_Session ( )

inline

Default destructor.

◆ ACE_GQoS_Session()

ACE_GQoS_Session::ACE_GQoS_Session ( )

private

Default constructor. Constructor is defined private so that only the friend factory can instantiate this class.

Member Function Documentation

◆ close()

int ACE_GQoS_Session::close ( )

virtual

Close the GQoS Session.

Implements ACE_QoS_Session.

◆ dest_addr() [1/2]

ACE_INET_Addr ACE_GQoS_Session::dest_addr ( ) const

inlinevirtual

Get the destination address for this GQoS session.

Implements ACE_QoS_Session.

◆ dest_addr() [2/2]

void ACE_GQoS_Session::dest_addr ( const ACE_INET_Addr & dest_addr )

inlinevirtual

Set the destination address for this GQoS session.

Implements ACE_QoS_Session.

◆ flags() [1/2]

ACE_QoS_Session::ACE_End_Point_Type ACE_GQoS_Session::flags ( ) const

inlinevirtual

Get/Set methods for the flags_.

Implements ACE_QoS_Session.

◆ flags() [2/2]

void ACE_GQoS_Session::flags ( const ACE_End_Point_Type flags )

inlinevirtual

Implements ACE_QoS_Session.

◆ open()

int ACE_GQoS_Session::open	(	ACE_INET_Addr	dest_addr,
		ACE_Protocol_ID	protocol_id )

virtual

Open a GQoS session [dest IP, dest port, Protocol ID].

Implements ACE_QoS_Session.

◆ qos() [1/3]

ACE_QoS ACE_GQoS_Session::qos ( ) const

inlinevirtual

Returns the QoS for this GQoS session.

Implements ACE_QoS_Session.

◆ qos() [2/3]

int ACE_GQoS_Session::qos	(	ACE_SOCK *	socket,
		ACE_QoS_Manager *	qos_manager,
		const ACE_QoS &	ace_qos )

virtual

Set QoS for this GQoS session. The socket parameter is used to confirm if this QoS session was subscribed to by the socket.

Implements ACE_QoS_Session.

◆ qos() [3/3]

void ACE_GQoS_Session::qos ( const ACE_QoS & ace_qos )

inlinevirtual

Sets the QoS for this session object to ace_qos. Does not interfere with the QoS in the underlying socket. This call is useful to update the QoS object when the underlying socket QoS is being set through a mechanism other than the previous qos () method e.g. inside the dgram_mcast.subscribe () where the QoS for the socket is set through ACE_OS::join_leaf ().

Implements ACE_QoS_Session.

◆ rsvp_event_type() [1/2]

ACE_QoS_Session::RSVP_Event_Type ACE_GQoS_Session::rsvp_event_type ( )

virtual

Set the RAPI event that last occurred.

Implements ACE_QoS_Session.

◆ rsvp_event_type() [2/2]

void ACE_GQoS_Session::rsvp_event_type ( ACE_QoS_Session::RSVP_Event_Type event_type )

virtual

Implements ACE_QoS_Session.

◆ rsvp_events_handle()

ACE_HANDLE ACE_GQoS_Session::rsvp_events_handle ( )

inlinevirtual

Get the file descriptor of the underlying socket.

Implements ACE_QoS_Session.

◆ session_id() [1/2]

int ACE_GQoS_Session::session_id ( ) const

inlinevirtual

Get the GQoS session id.

Implements ACE_QoS_Session.

◆ session_id() [2/2]

void ACE_GQoS_Session::session_id ( const int session_id )

inlinevirtual

Set the GQoS session id.

Implements ACE_QoS_Session.

◆ source_addr() [1/2]

ACE_INET_Addr * ACE_GQoS_Session::source_addr ( ) const

inlinevirtual

Implements ACE_QoS_Session.

◆ source_addr() [2/2]

void ACE_GQoS_Session::source_addr ( ACE_INET_Addr * source_addr )

inlinevirtual

Set the source port for this session.

Implements ACE_QoS_Session.

◆ source_port() [1/2]

u_short ACE_GQoS_Session::source_port ( ) const

inlinevirtual

Get the source port for this session.

Implements ACE_QoS_Session.

◆ source_port() [2/2]

void ACE_GQoS_Session::source_port ( const u_short & source_port )

inlinevirtual

Set the source port for this session.

Implements ACE_QoS_Session.

◆ update_qos()

int ACE_GQoS_Session::update_qos ( )

virtual

Calls the ioctl (ACE_SIO_GET_QOS). It is a mechanism of updating the QoS for this session asynchronously, as RSVP events occur.

Implements ACE_QoS_Session.

◆ version()

int ACE_GQoS_Session::version ( )

inlinevirtual

Get the RAPI event that last occurred.

GQoS version.

Implements ACE_QoS_Session.

Friends And Related Symbol Documentation

◆ ACE_QoS_Session_Factory

friend class ACE_QoS_Session_Factory

friend

The factory is a friend so it can create this object through the only private constructor.

Member Data Documentation

◆ GQoS_session_id

int ACE_GQoS_Session::GQoS_session_id = 0

static

This is a session ID generator. It does a lot more than expected from an int!.

The documentation for this class was generated from the following files:
